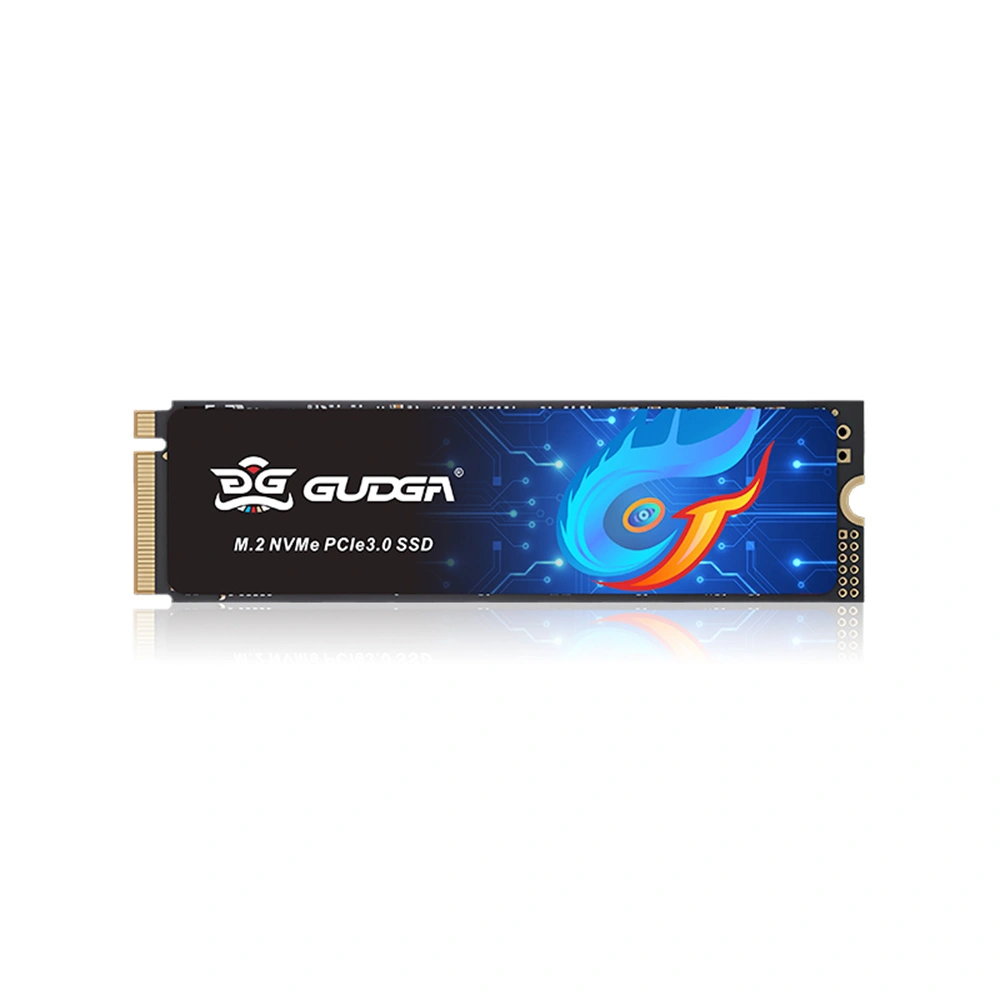

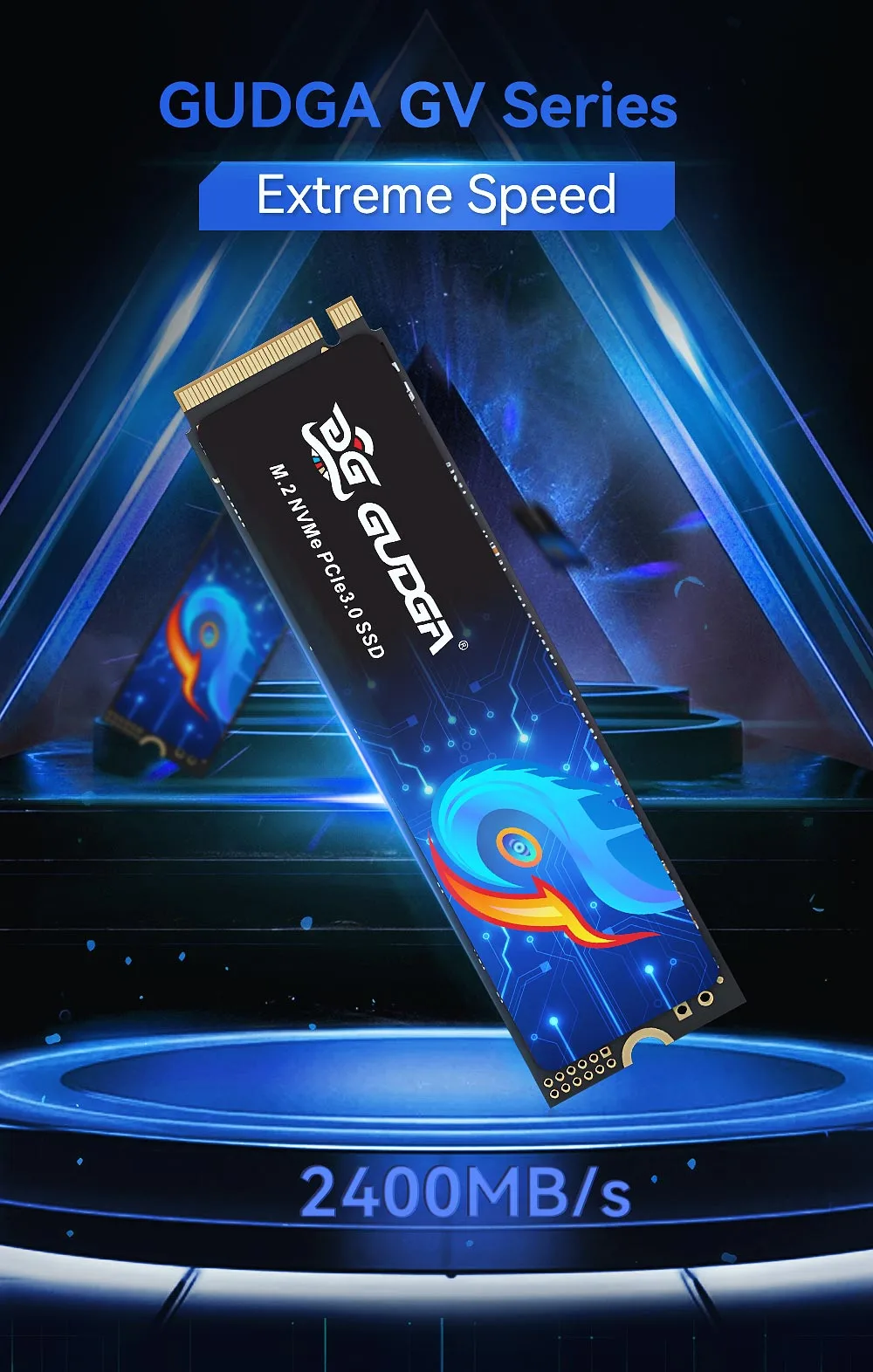

M.2 2280 NVMe PCIE3.0X4 Hard Drive SSD

M.2 2280 NVMe PCIE3.0X4 Hard Drive SSD is a compact solid-state hard drive with 22×80 mm form factor. Based on NVMe protocol over PCIe 3.0 ×4 lane, it delivers far faster read-write performance than traditional SATA SSDs. Featuring shock resistance, zero noise and low power consumption, it is mainly used as boot storage for desktops, laptops, DIY builds and office devices. Multiple capacity options meet daily computing, gaming and light-creation demands. Certified with CE, FCC and RoHS, it is a mainstream upgrade solution for modern computers.

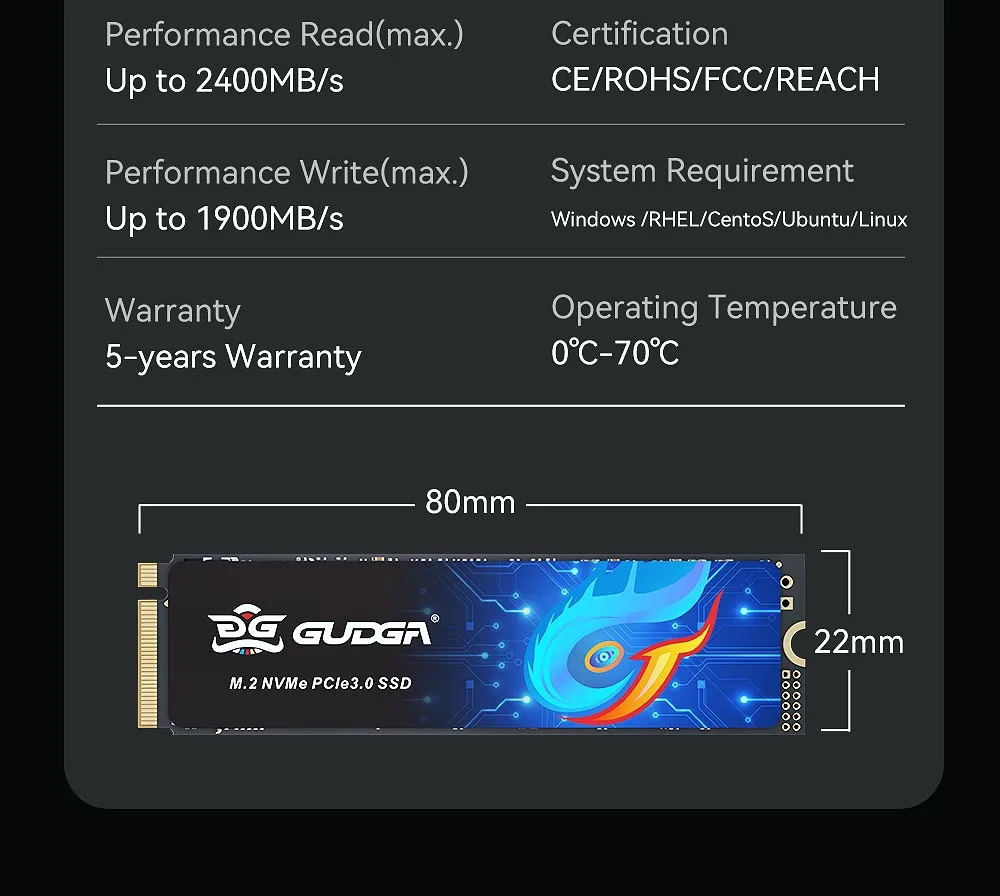

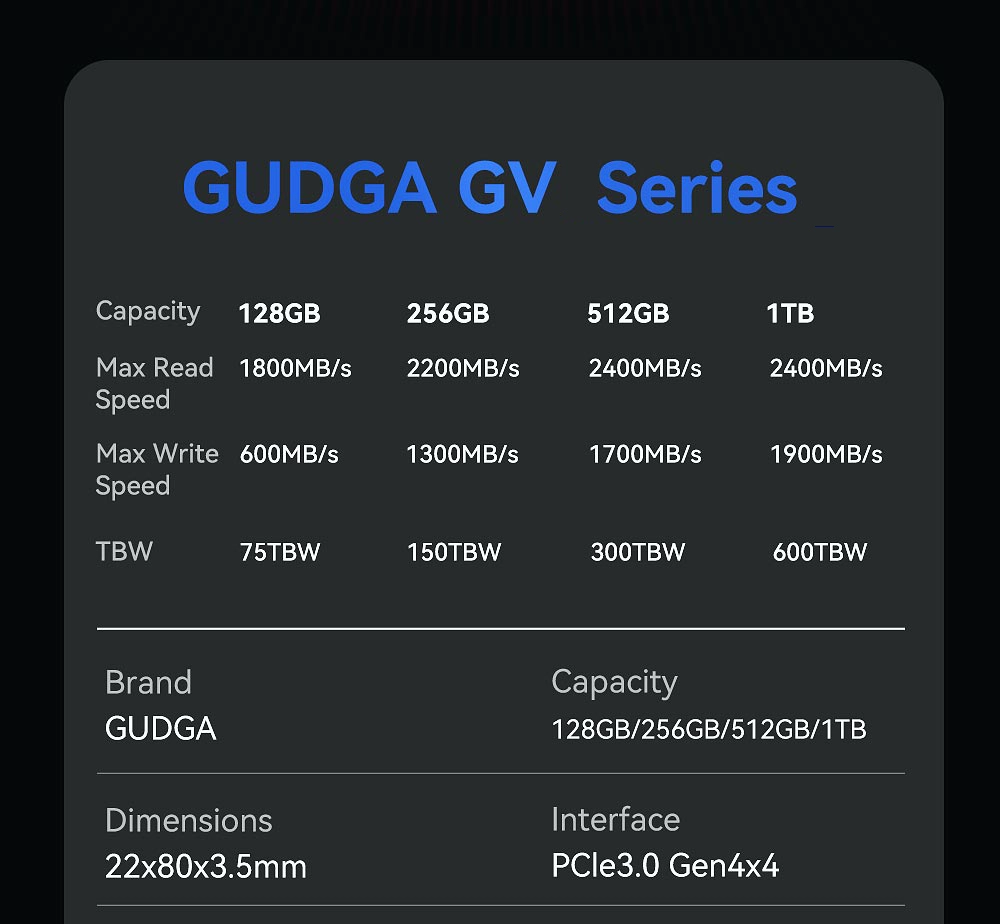

Product Parameter

Why choose us?

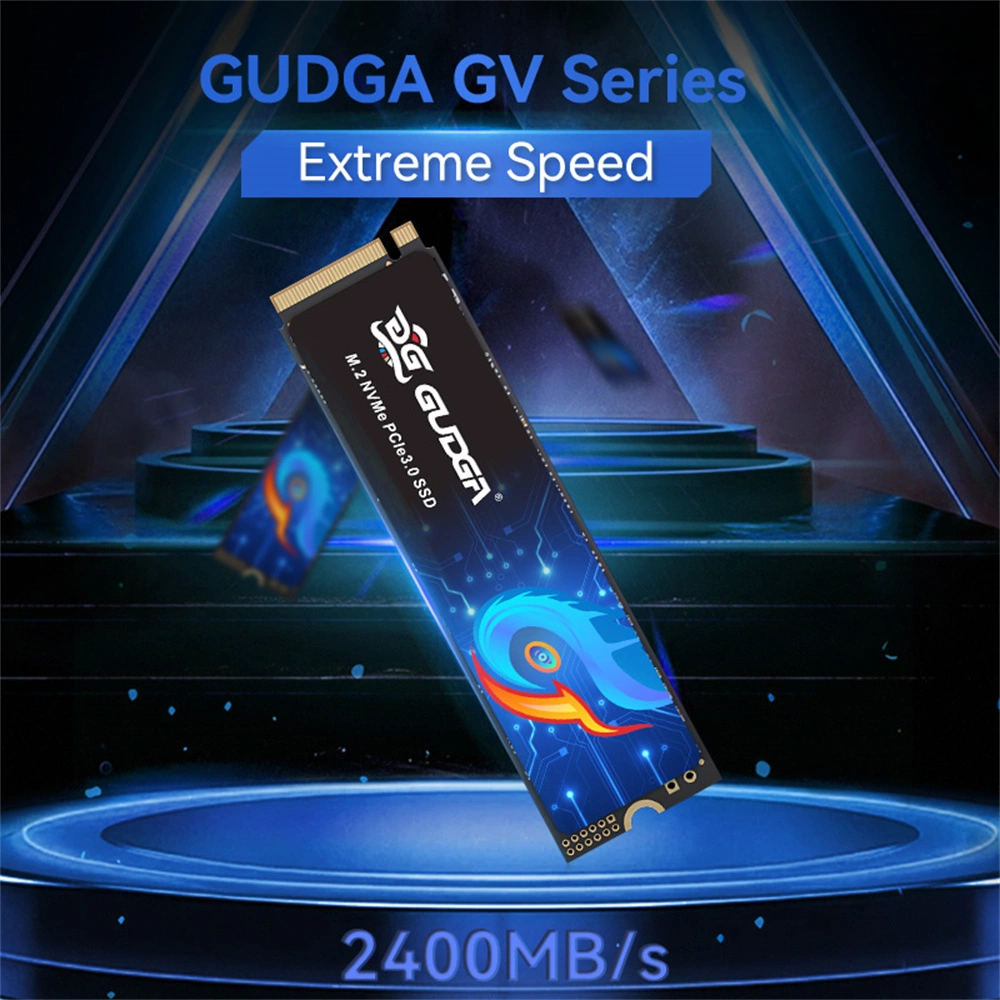

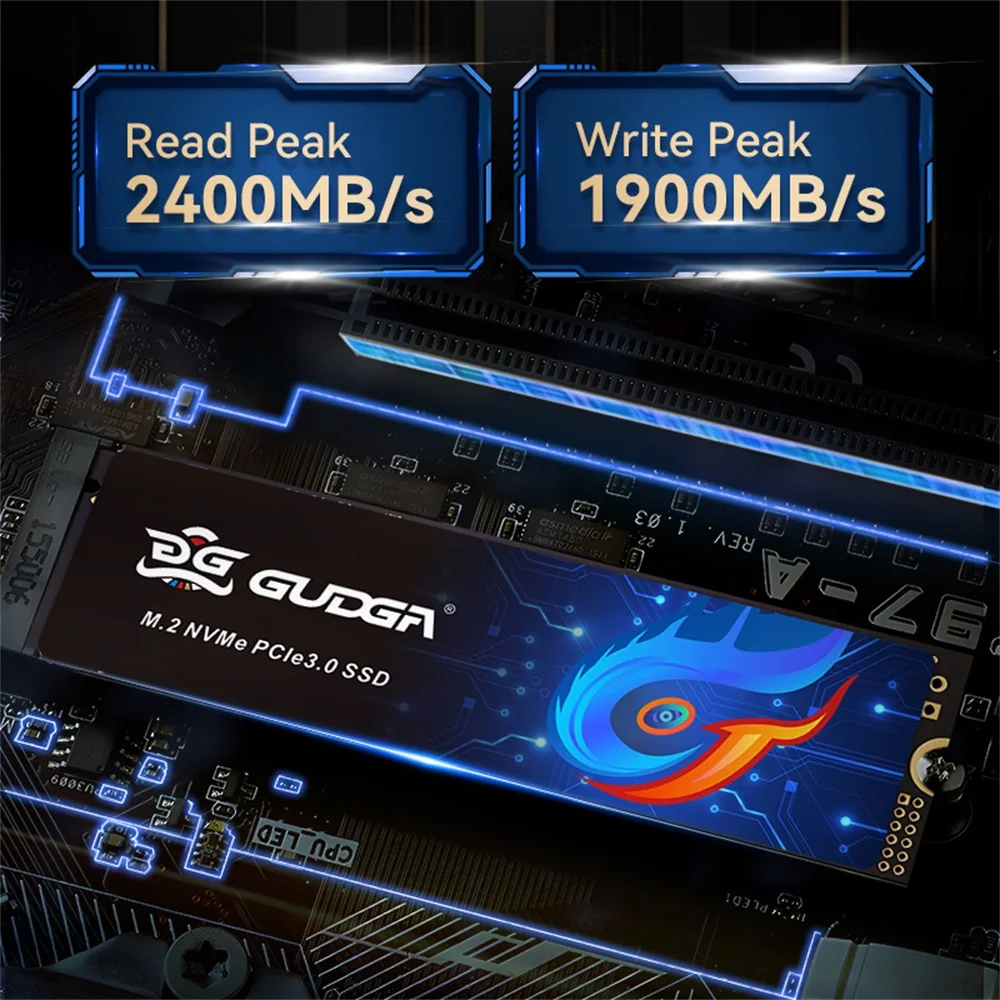

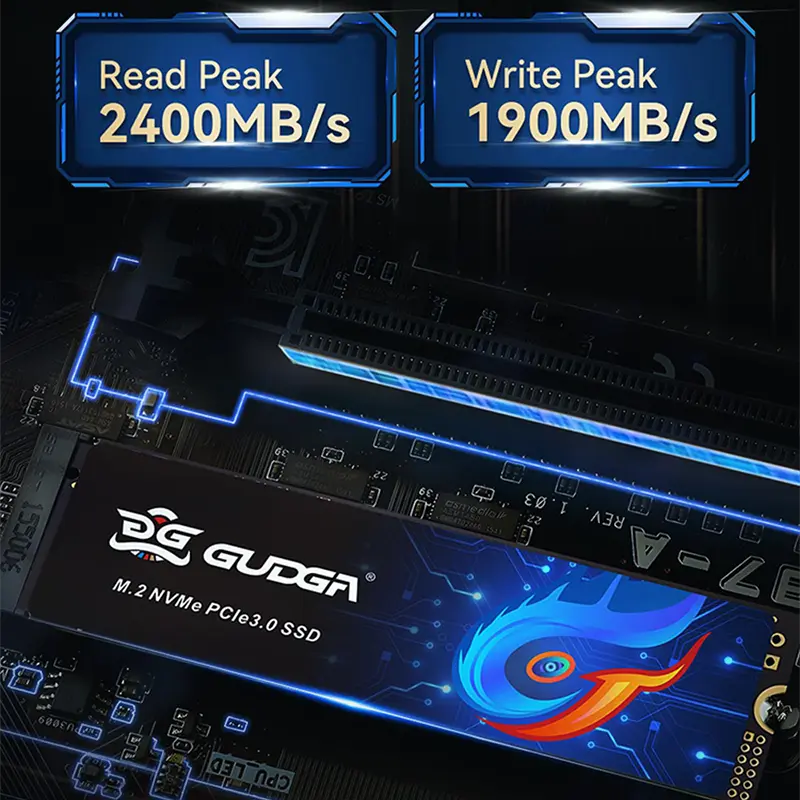

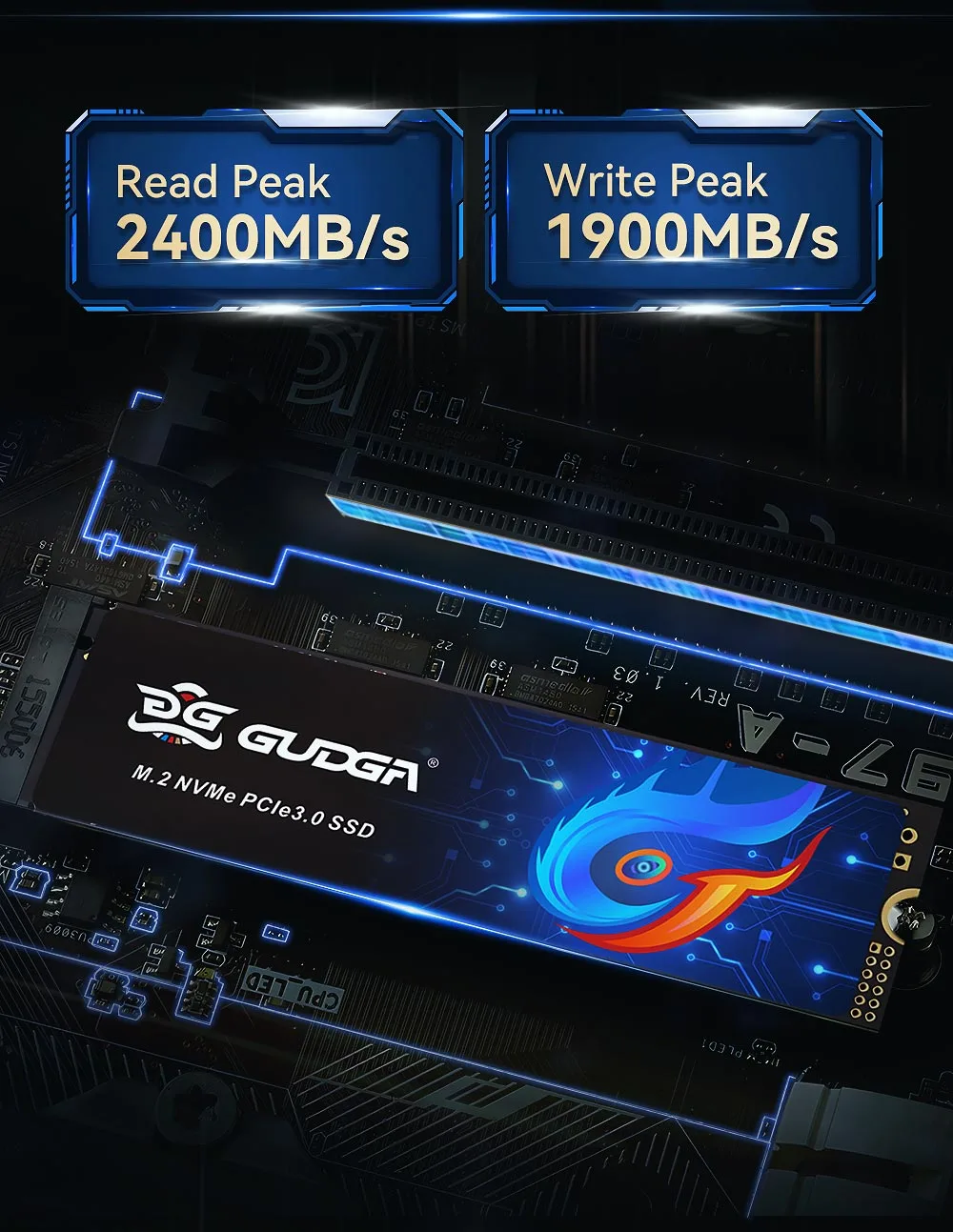

1. High-Speed Performance: Adopts PCIe3.0 x4 4-lane NVMe protocol with sequential read speed up to 2400MB/s.

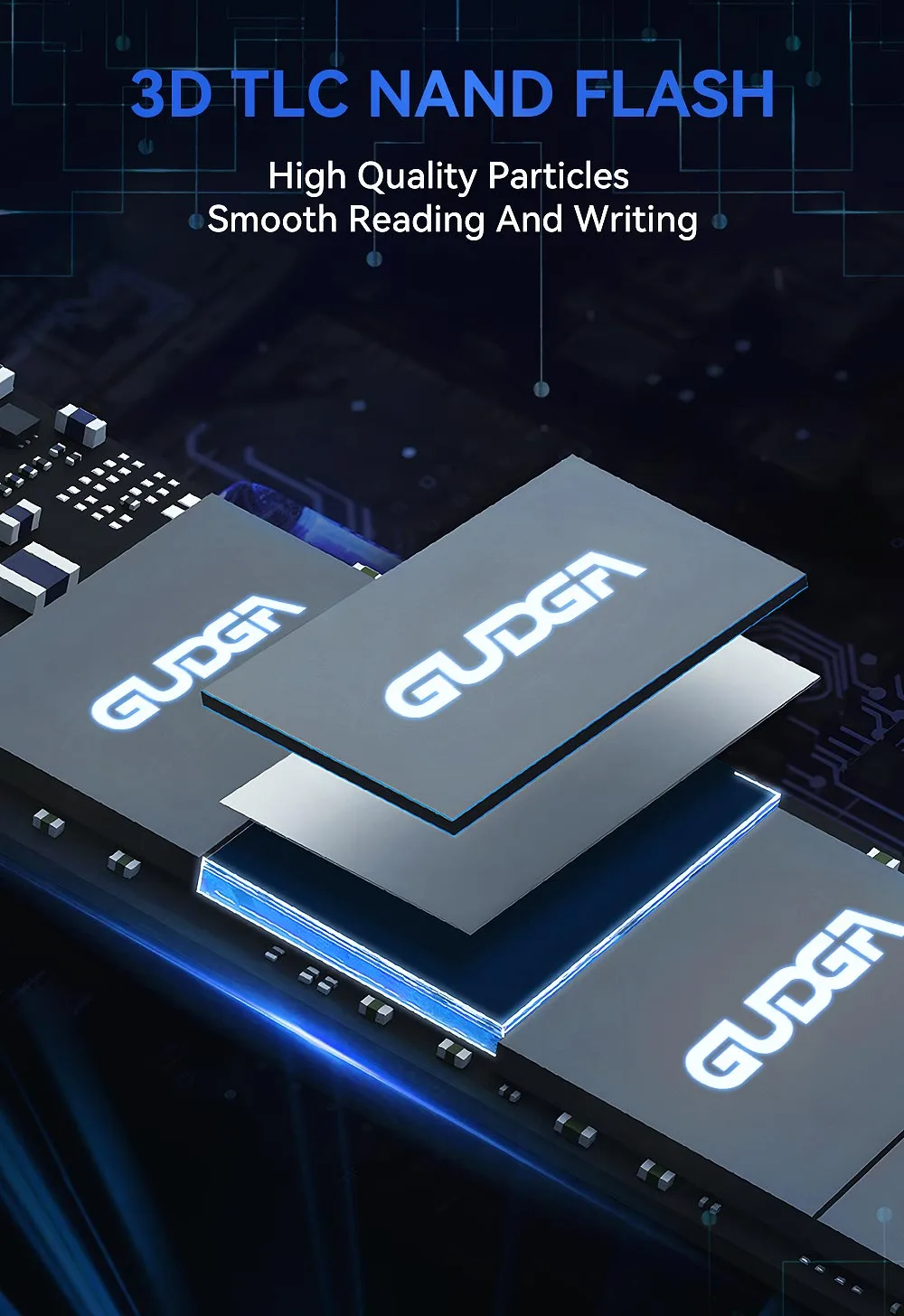

2. Excellent Cost-Performance: Built with 3D TLC NAND flash, balancing performance and service life.

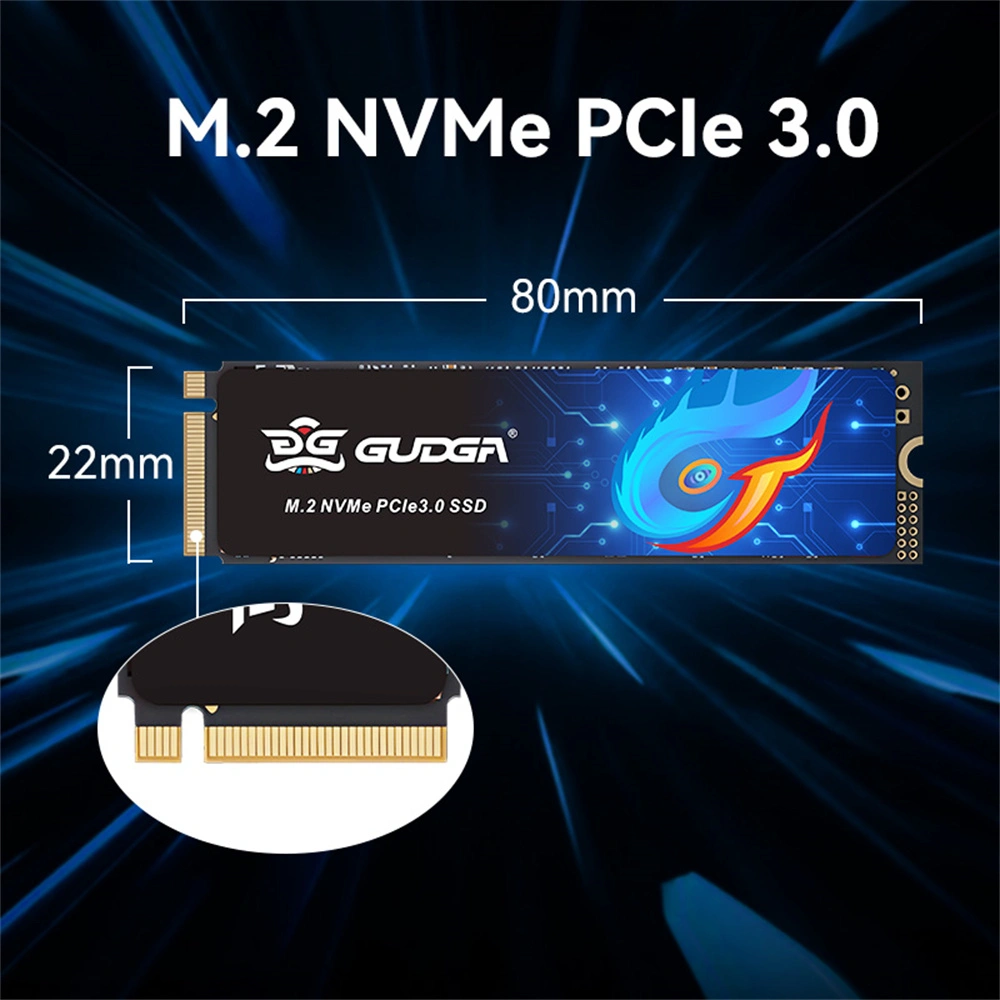

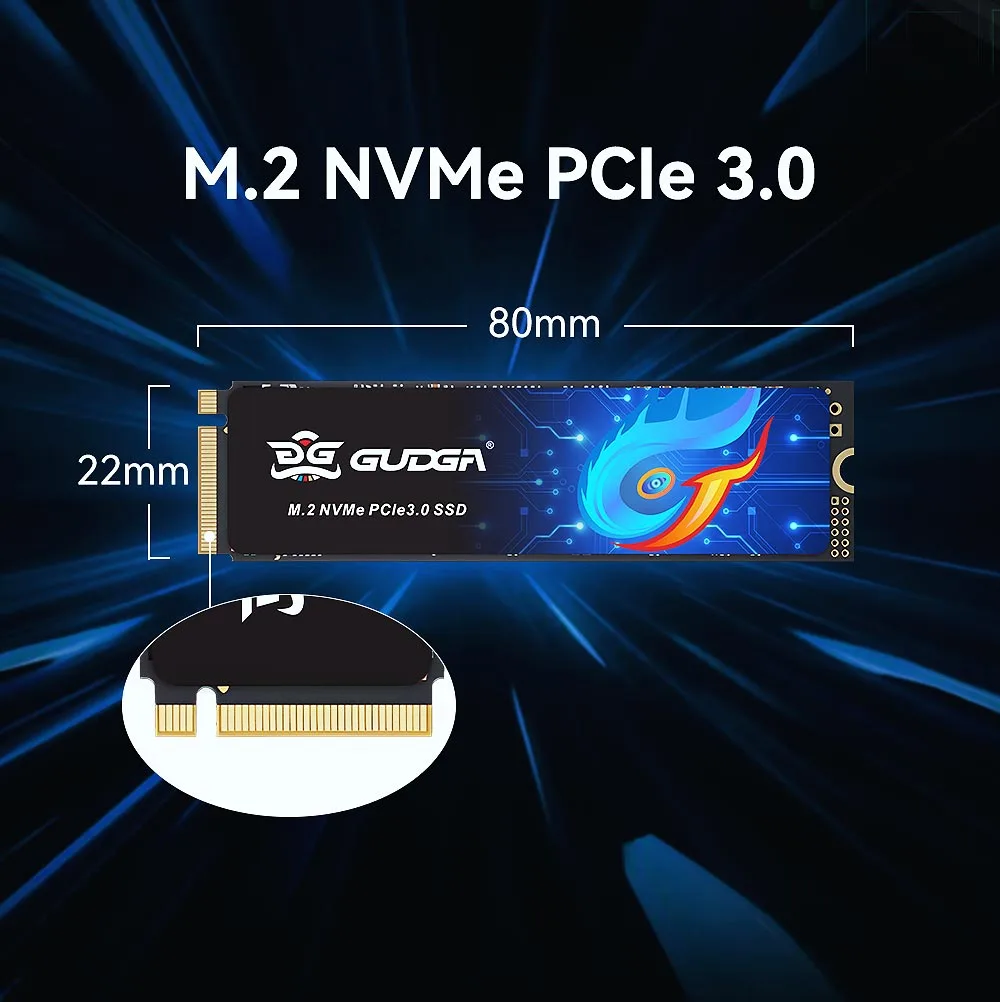

3. Broad Hardware Compatibility: Standard M.2-2280 M-Key form factor, compatible with mainstream Intel & AMD desktop motherboards, gaming laptops and ultrabooks.

4. Superior Stability & Durability: No moving mechanical parts, shock-proof and drop-resistant.

5. Low Power Consumption & Zero Noise.

6. High MTBF Reliability: Mean Time Between Failures reaches 1,000,000 hours.

7. Multiple Capacity Options: Available in 128GB / 256GB / 512GB / 1TB /2TB

When you need it?

· Desktop PC hardware upgrade: Replace old SATA SSD / HDD to boost system responsiveness

· Notebook upgrade: Upgrade gaming laptops & ultra-thin notebooks equipped with M.2 2280 M-Key slot

· DIY PC building: Cost-effective primary boot drive for entry-level & mid-range DIY systems

· Office commercial devices: Office desktops, all-in-one PCs, POS terminals, small industrial hosts

· Light-weight content creation: Store photos, videos, design source files for graphic work

· Channel bulk order: System integrators, computer resellers, ODM/OEM assembly projects

Cautions & Notes

1. This NVMe SSD works under UEFI mode only. It cannot boot under Legacy BIOS. Confirm your mainboard supports NVMe before purchase.

2. Actual speed varies by CPU, motherboard chipset, file size, system environment and test software. Rated 2400MB/s is maximum lab benchmark result.

3. Avoid physical shock, bending or static electricity damage during installation. Use anti-static protection.

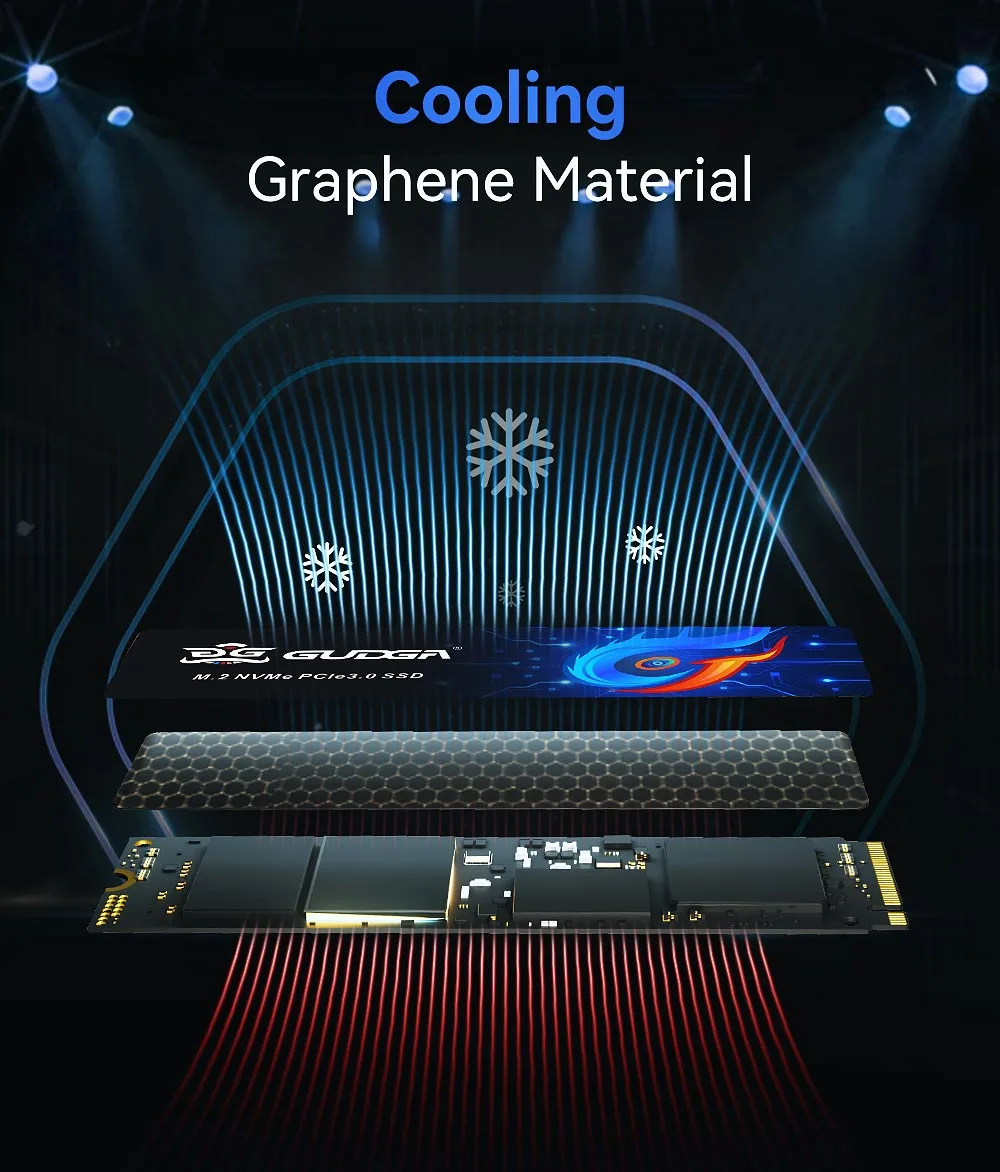

4. Keep proper airflow for heat dissipation. Continuous heavy workload may raise operating temperature. Adding an M.2 heatsink is recommended for high-load scenarios.

5. Do not disconnect power during disk initialization, formatting or system migration, which may cause disk damage or data loss.

6. Back-up important data regularly. Warranty does not cover data recovery or data loss caused by improper operation.

7. DRAM-less design relies on system HMB function. Disable HMB in BIOS will partially reduce random-write performance.

FAQ

Q1: My motherboard cannot detect the Gudga M.2 2280 NVMe PCIE3.0X4 Hard Drive SSD.

A1: 1. Confirm your slot is M-Key PCIe3.0 x4 (not B-Key SATA M.2). 2. Update motherboard BIOS to latest version. 3. Re-seat the SSD and check physical installation. 4. Confirm UEFI mode is turned on in BIOS.

Q2: Why my test speed is lower than rated 2400MB/s?

A2: Rated speed is lab benchmark result. Actual performance is affected by CPU generation, chipset, driver status, file fragmentation and test tool. Large-file continuous write may trigger SLC cache exhaustion and speed drop, which is normal for TLC SSD.

Q3: Can I use this SSD for game console?

A3: Not supported for game consoles. Designed for Windows / Linux PC & notebook only.

Q4: What does DRAM-less mean? Will performance be poor?

A4: This model uses DRAM-less architecture with HMB technology borrowing host system RAM. It delivers excellent daily performance for office, gaming and normal creative tasks. Performance gap only appears under extreme heavy random-write workload.

Q5: Is heatsink mandatory?

A5: Not mandatory for light daily usage. For long-time high-load tasks, adding heatsink avoids thermal throttling.

Q6: Can I restore my data if SSD fails?

 A6: Regular data backup is strongly recommended. Product warranty covers hardware replacement only, NOT data recovery service.

Comment about M.2 2280 NVMe PCIE3.0X4 Hard Drive SSD

“Easy installation. Boot time drops to 8 seconds. Games load much faster. Daily office and gaming work runs smoothly. Great value for PCIe3.0 NVMe.”

“Works perfectly on my AMD B450 motherboard. Speed close to 2200MB/s in real-world test. Temperature stays acceptable under normal use.”

“Bought for old notebook upgrade. No complicated setting after installation. System migration finished without hassle. Very cost-effective upgrade choice.”
