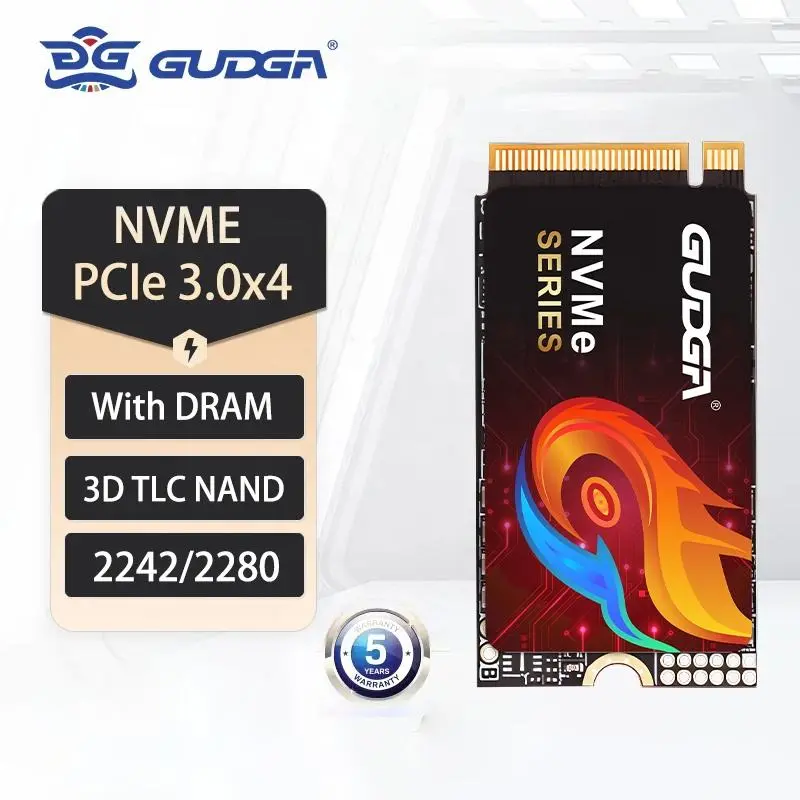

Fast Speed M.2 Nvme 2242 PCIE3.0 Hard Disk Disco

As a top-quality storage manufacturer and supplier in China, GUDGA presents Fast Speed M.2 Nvme 2242 PCIE3.0 Hard Disk Disco. It is made of PCBA material, has a compact and small size, and is equipped with the NVMe high-speed protocol. Its read and write performance far exceeds that of traditional SATA solid-state drives. The product features low power consumption, low heat generation, shock resistance, temperature tolerance, stable data protection, and multiple international certifications and a 5-year warranty. It offers multiple capacity options, is widely compatible with lightweight laptops, handheld devices, mini hosts, and industrial equipment, and supports customized services. The delivery time is stable and the cost performance is outstanding.

Product Feature And Application

I. Form Factor and Interface

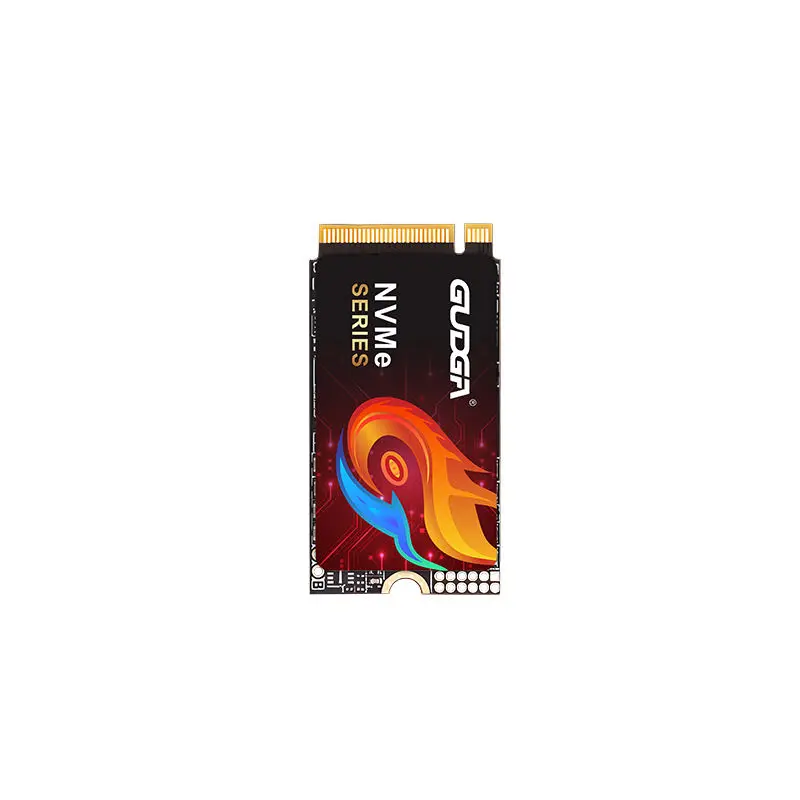

Specifications: M.2 2242 (22mm wide × 42mm long × 2.35–3.6mm thick), single-sided NAND flash, mini and compact.

Interface: PCIe 3.0 x4 (bandwidth 8GT/s, ≈32Gbps), NVMe 1.3/1.4 protocol, far superior to SATAⅢ (6Gbps).

Compatibility: Compatible with 2242 slots (such as ThinkPad T470/T480, some mini PCs/industrial PCs), some can be converted to 2280.

II. Performance (Mainstream TLC)

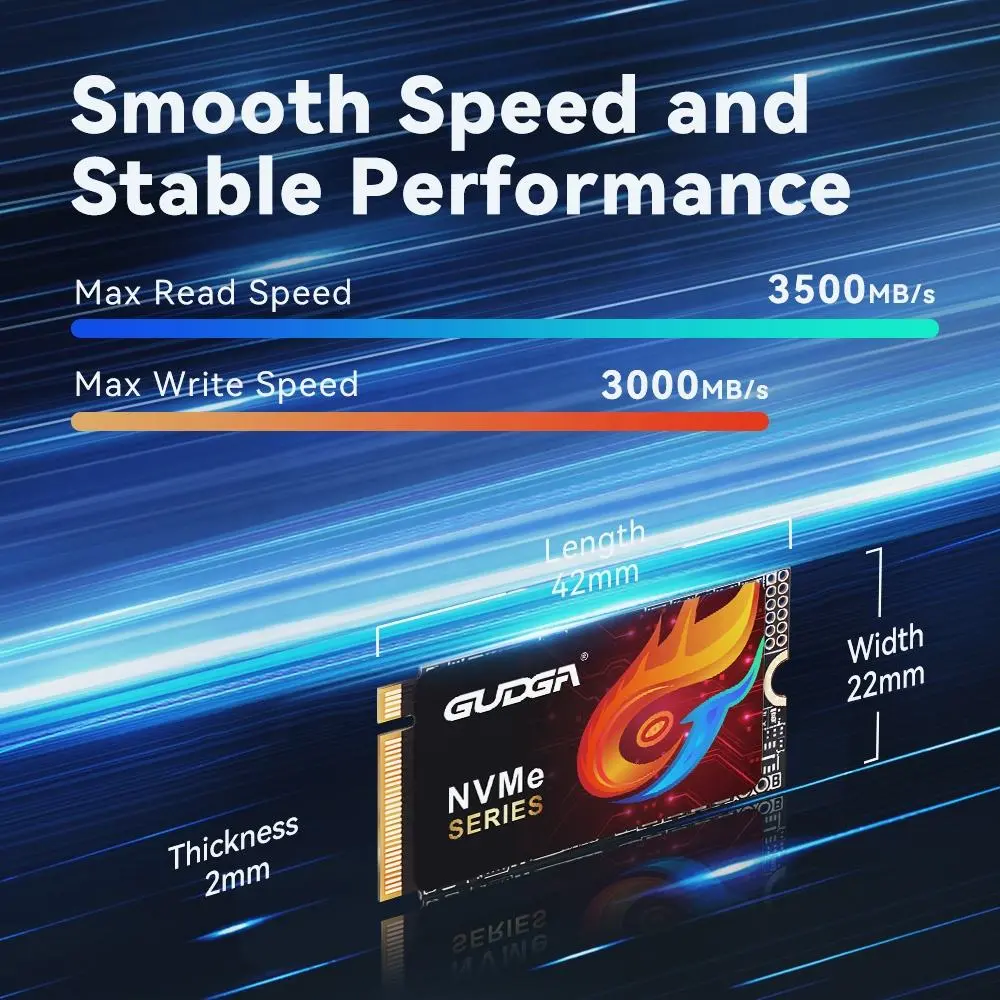

Sequential Read/Write: Up to3500MB/s / 3200MB/s, daily average approximately 1800–2500MB/s / 1200–2000MB/s.

4K Random: Read ≈80–120K IOPS, Write ≈200–300K IOPS, far exceeding SATA SSDs.

Capacity: 128GB–2TB, mainstream 256GB/512GB/1TB.

Power Consumption: 3.3V power supply, standby < 1W, full load ≈3–5W, low heat generation.

III. Reliability and Stability

NAND Flash: Primarily 3D TLC, some industrial-grade iSLC; TBW: 60TB–960TB, MTBF > 3 million hours.

Protection: Power loss protection (iPower Guard/Vt Guard) to prevent data loss during power outages.

AES-256 encryption, TCG Opal 2.0, end-to-end ECC data protection.

Shock resistance (1500G), vibration resistance (20G), wide temperature range (-40℃~85℃, industrial grade).

Heat dissipation: Graphene thermal pads / dynamic temperature control to prevent overheating and performance throttling.

Product Parameter

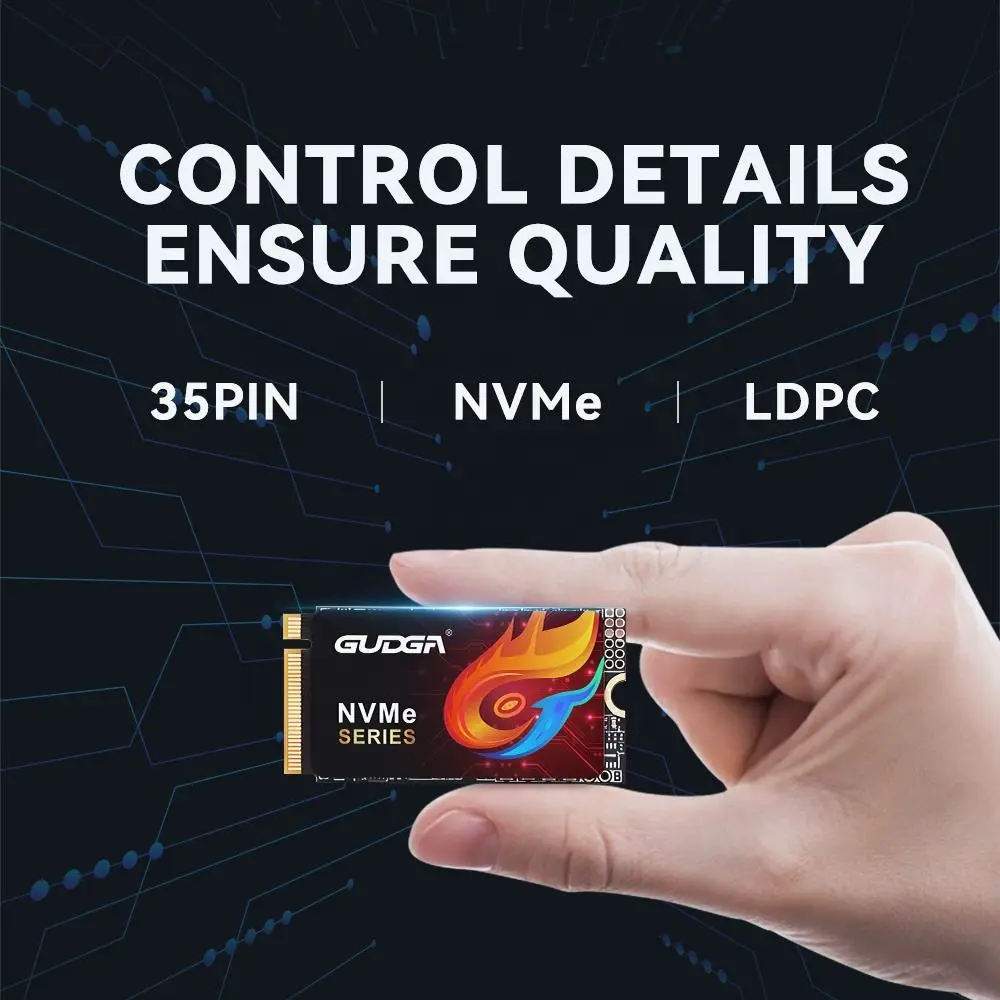

Features of Fast Speed M.2 Nvme 2242 PCIE3.0 Hard Disk Disco

Compact Size (2242): The 2242 specification refers to a width of 22mm and a length of 42mm. Compared to the standard 2280 (80mm), the 2242 is very small, making it ideal as the main storage or cache for thin and light laptops, 2-in-1 tablets, or expansion cards.

NVMe Protocol + PCIe 3.0: Although often categorized as "low-speed" or "medium-speed," it still uses PCIe lanes (usually Gen3 x2 or x4) and supports the NVMe protocol. Read and write speeds easily surpass SATA interfaces (~500MB/s), with typical sequential read speeds reaching 1000MB/s - 1500MB/s or higher.

Low Heat and High Energy Efficiency: To fit into space-constrained and heat-limited devices (such as the Surface Pro and mini PCs), these SSDs typically use a reduced number of lanes (e.g., Gen3 x2) or a low-power controller, reducing heat generated during high-speed operation.

Wide compatibility: Suitable for B&M Key M.2 slots supporting PCIe 3.0 2242.

Application Scenario

1.Upgrades for Thin and Light Portable Devices

Ultrabooks/Thin Laptops: Replaces older 2242 SATA SSDs, significantly improving system boot and application loading speeds.

2-in-1 Laptops/Tablets: Suitable for systems with limited internal space that cannot accommodate a standard 2280 SSD.

2.High-Performance Mobile Storage

Portable External Hard Drives: Used in NVMe enclosures to create tiny yet high-speed portable storage devices with transfer rates of 1000MB/s-2000MB/s.

3.Gaming Consoles and Mini PCs

Steam Deck/ROG Ally/Handhelds: This is the most popular application area for 2242 PCIe 3.0 NVMe SSDs, used to expand game installation space.

NUC/Mini-PC: Compact, high-speed boot drives for small form factor computers.

4.Embedded Systems and Industrial Control

Edge Computing Devices/Edge Gateways: Used for data acquisition and edge AI inference devices, suitable for industrial systems with strict requirements for energy efficiency and size.

Medical and Storage Devices: Lightweight cache storage for cold storage, data warehouses, or medical records

FAQ

Question 1: How to do the custom package  ?

Answer:  You can send us me your layout or logo ot us ,we can help to design the box layout for you approve ,normally have min qty issue 1000-3000pcs  ,pls kindly noted .

Question 2: What SSD capacity is best when you going to buy it ?

Answer : 512GB is an entry-level choice, suitable for office work or light gaming; 1TB offers the best value for money; gamers are advised to go for 2TB or higher.

Do I need two SSDs?

Answer : Not necessarily. One large-capacity SSD is sufficient. If your system already has an HDD, simply add an SSD for the operating system and games.?

Question 3: Do Fast Speed M.2 Nvme 2242 PCIE3.0 Hard Disk Disco get hot ?

Answer : Higher performance NVMe SSDs generate more heat, so a heatsink is recommended.

Lucky our ssd all with the heatsingk with Graphene materials.normally other supplier SSD

more details pls check our Youtube link and facebook link .
